LED Wallwasher Light
This is a great durable professional-grade LED wall washer light. Very nice appearance and high performance. It has widely wattage for your choice: 18W, 24W, 32W 48W, 72W even 100W.
Materials/Finish
Aviation aluminum alloy
Die-casting aluminum end cap
4mm high transparency stalinite
304 SS screw
AC100V-250V/50-60Hz/DC24V
IP65 structural waterproof
Constant current for single color
DMX512 control system
RG-WWL-H4590 is the high power LED wall washer, with aluminum alloy fixture, die casing aluminum end cap, and structural waterproof. High-intensity tempered cover glass and high transmittance lens, combined with the optical refraction principle design, can reach 90% transmittance, and can have more brilliant light effect. Multifunctional adjustable aluminum alloy bracket, can adjust the light emitting angle accurately, to have more uniform and wider illuminated area. IP65. DMX512 control system to display the R/G/B colorful image, and color change synchronously.
Advantage
▪ Structure waterproof, with unique professional mould.
▪ Stretched aluminum housing, good heat dissipation aluminum, 100cm2/W.
▪ Die-casing aluminum end cap, waterproof structure.
▪ Good in color temperature control (non-glue process).
▪ First-class international brand LED chip, reasonable heat dissipation design, to ensure the life-span of the LED fixture.
▪ Professional optical design well match with high efficiency optical lens.
▪ Efficient waterproof power supply build-in, 48 hours aging test under specific environment before shipment.
▪ DMX512 control, to fulfill 16780,000 kinds of color changing.
▪ Easy installation, and adjust the shoot angle according to the actual installation situation, the dam board to increase the use efficiency of light.
Application
Applied to the scenery along the river, building external wall, bridges, parks and other structures to render the atmosphere, increasing the visual effect.
skyscraper Building Hotel City Lighting - Bridge Historical Landscape Afforesting Garden
Parameters
| Fixture and Electrical Equipment | |||
| Item Name | LED Linear Wash | Item Number | RG-LWL-4225 Series |
| Watts | 24W | Lamp Model | High Power LED |
| Beam Angle | 45° Bead Lenses | Body Material | Alumiunm Alloy |
| Lamp-Chimney Material | Tempered Glass | Degree of Protection | IP65 |
| Beam Angle | 30° - 90° | Lenses Angle | 30° - 90° |
| Input Watts | 6W - 36W | Light Output Ratio (LOR) | 70 LM/W |
| Input Voltage | AC220V | CCT | 2000K - 6000K |
| Lumen | 420LM - 2520 LM | Wire Connected Definition |
Brown: L ; Blue: N ; Yellow-green: GND |
| Angle of Illumination | Adjusted | System Life Time | 30,000 Hours |
| Control & Others | SPI / DMX512 / Steady | Environment Tmperature | -20°C - 45°C |
| Available Color | Red / Green / Blue / Yellow / White / Warm White / RGB | ||
| Dimension | L 1000 X W 42 X H 65.2 mm | ||
LED Wall Washer Light Accessories
 |

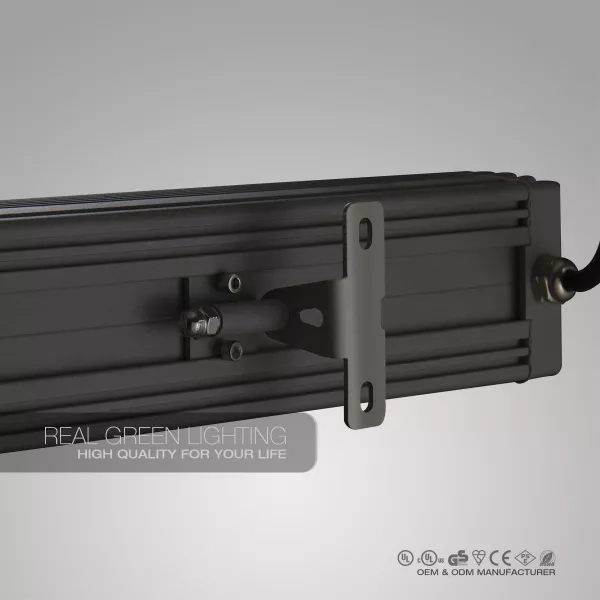

Mounting Bracket for LED linear wall washer Product Number : RG-LWL-HP Quantity : 2*Mounting Bracket Details : Stainless steel bracket and screw, adjustable lighting angle, more easier to installation. Type of Installation : Professional mounting bracket, freely adjust, fixed support. |
 |
Connection Wire for LED linear light Product Number : RG-LWL-A-HP Size : 50cm Quantity : 2*50cm connection wire Details : Black color housing with standard wire Type of Installation : Male plug connect with female plug, flexible to connect. |
Compatible Power Supply
|
LED Controller Series for LED Linear Wash Light -- 950 Master Control (Serial) These controller let you create vivid amazing lighting effect. |
||
| Item Number | Item Details | |
 |
RG-3L-C-950MC-S |
Input Voltage: AC220V Power: 2.5W Environment Temperature: -20°C-55°C Rated Current: 500mA Dimension (mm): L235 * W135 * H45 |
|
LED Controller Series for LED Linear Wash Light -- 950 Master Control (DMX512) DMX512 controller, standard output USITT DMX512/1990 general protocol to show the intelligent lighting effect. |
||
| Item Number | Item Details | |
 |
RG-3L-C-950MC-DMX512 |
1. 950 Mater Controller is the industrial synchronous and asynchronous controller, for DMX512 control, with 8 outputs, each output can max. Reach 170 pixels (512 channels). 2. Controller output is using standard USITT DMX512/1990 general protocol. 3. Controller and controller connection is using Ethernet interface and UDP networking protocol, max, transmission distance is 100M. 4. 100Hz refresh rate to ensure the stable frame. 5. 512 grade tri-phosphor brightness control individual, make more easy and effective in white balance exact adjustment. 6. Display module to display the controller parameter and status. 7. Double network interface, to fulfill the controller and controller connection, controller can be auto-detected, and the connection status will be show in the display. 8. Adjusting the hardware anti-gamma correction based on visual physiology. |
|
LED Controller Series for LED Linear Wash Light -- 608 Master Control (DMX512) 512 grade tri-phosphor brightness control individual |
||
| Item Number | Item Details | |
 |
RG-3L-C-608MC-DMX512 |
1. 608 Master controller is the the industrial synchronous and asynchronous controller, for DMX512 control, with 8 outputs, each output can max. Reach 170 pixels (512channels). 2. Controller output is using standard USITT DMX512/1990 general protocol. 3. Controller and controller connection is using Ethernet interface and UDP networking protocol, max, transmission distance is 100M. 4. 100Hz refresh rate to ensure the stable frame. 5. 512 grade tri-phosphor brightness control individual, make more easy and effective in white balance exact adjustment. 6. Display module to display the controller parameter and status. 7. Double network interface, can connect to the PC, controller can be auto-detected,and the connection status will be show in the display. 8. Adjusting the hardware anti-gamma correction on visual physiology. |
|
LED Controller Series for LED Linear Wash Light -- T8000C Controller
|
||
| Item Number | Item Details | |
 |
RG-3L-C-T-8000C |
Input: DC 5V Power: 3W Environment Temperature: -20°C-55°C Weight: 0.8KG Dimension (mm) : L181 * W135 * H30 1. 32-65536 grade gray-scale controlling, gamma software correction processing. 2. Support any dot, line, surface light source, and regular, unconventional processing. 3. Controller have 8 output port, each port can max Load 1024 fixtures. 4. Controller can be connected together in offline control, light effect store in the SD Card. 5. T-8000C max store 16 files, cop the files to the SD card in turn. |
|
LED Controller Series for LED Linear Wash Light -- T8000A-TTL Controller Stable TTL Controller for your using |
||
| Item Number | Item Details | |
 |
RG-3L-C-T-8000A-TTL |
Input: DC 5V Power: 3W Environment Temperature: -20°C-55°C Weight: 0.8KG Dimension (mm) : L181 * W135 * H30 1. 32-65536 grade gray-scale controlling, gamma software correction processing. 2. Support any dot, line, surface light source, and regular, unconventional processing. 3. Controller have 8 output port, each port can max Load 1024 fixtures. 4. Controller can be connected together in offline control, light effect store in the SD Card. 5. T-8000C max store 16 files, cop the files to the SD card in turn. |
|
Controller Series for LED Linear Wash Light -- C100A Off-line Controller Small size, effective effect. |
||
| Item Number | Item Details | |
 |
RG-3L-C-C100A | Input Voltage: AC 7.5V- 18V/DC 7.5V-24V/DC 5V
Power: 2W Environment Temperature: -20°C-55°C Dimension (mm) : L160 * W87 * H25 Control color: RGB three primary colors, RGBW four colors, full-color display Control pixel: 2048 pixels Output interface: synchronous serical port data signal; DMX512 signal (can not synchronous output) Interface type: 3pin*1, 4pin*1, 5pin*1 |
